1380*1380*450mm Push-pull Type Wall Exhaust Fan YS-1270

FEATURES OF PUSH-PULL TYPE WALL EXHAUST FAN

• The special push-pull shutter mechanism can open and close the shutter automatically.

• The stainless steel blade uses a stamping molding process and it has many characteristics.

     Possessing beautiful

     Durable, effectively improving the service life

     High-precision balance testing revision characteristics

     Avoiding being deformed and cracked

     Working smoothly

     Reducing the noise

• The unique concave handling design of the exhaust fan not only helps avoid inconvenience occurring in the transport but also keeps favorable installation and a beautiful exterior.

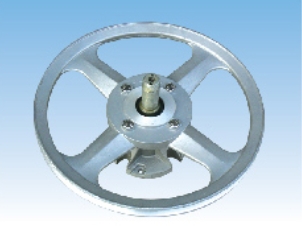

• The V-type belt 's material is high-strength and light-weight aluminum magnesium alloy, formed by heat press processing.

• The A-type belt or B-type belt, can be customized according to the sales condition of agents to meet different customers' needs.

• Equipped with efficient and energy-saving motors with CCC certification. Protection level:lP55. lnsulation level: F.

• Guide rod-embedded steel is installed on the impeller. enhancing the reliability. and effectively avoid shifts during the process of nylon production.

TECHNOLOGY PARAMETER OF PUSH-PULL TYPE WALL EXHAUST FAN

	Model No.	YS-1270
	Fan Blades Diameter	1270mm
	Frequency	50Hz
	Motor Rotational Speed	≥1400 rpm
	Air Flow	48000 m³/h
	Input Power	1100W
	Noise Decibels	≤64dB
	Rated Voltage	380V

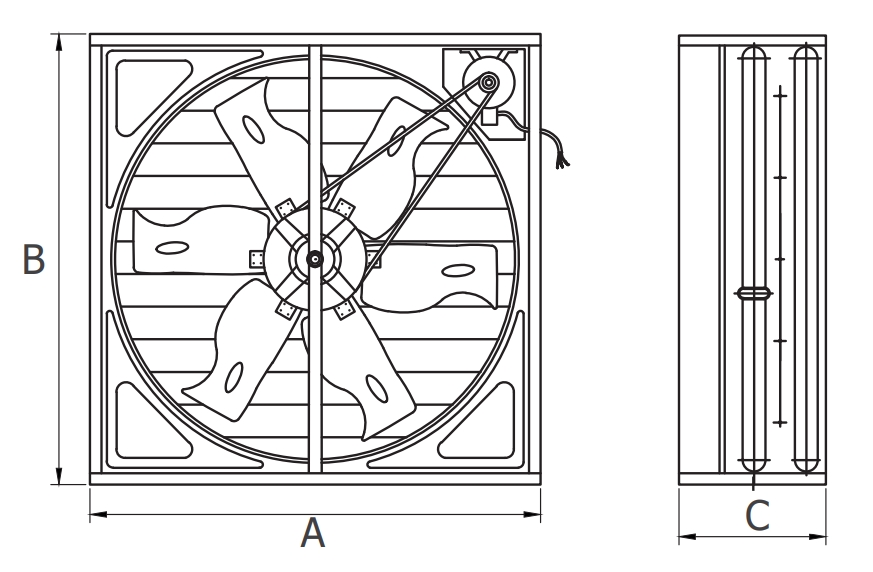

	Width (A)	1380mm
	Height (B)	1380mm
	Thickness (C)	450mm
	Light Trap Zize	1380×1380×270mm

APPLICATION OF PUSH-PULL TYPE WALL EXHAUST FAN

Push-pull high-volume exhaust fans find various applications in warehouses, animal farms, factories and industrial spaces where there's a need to move large quantities of air to control temperature, and humidity, or remove pollutants.

Here are some common applications:

Livestock Barns

High-volume exhaust fans are employed to maintain air quality, control humidity, and remove odors and noxious gases from animal housing areas.

Greenhouses

They help regulate temperature and humidity levels, ensuring optimal growing conditions for plants.

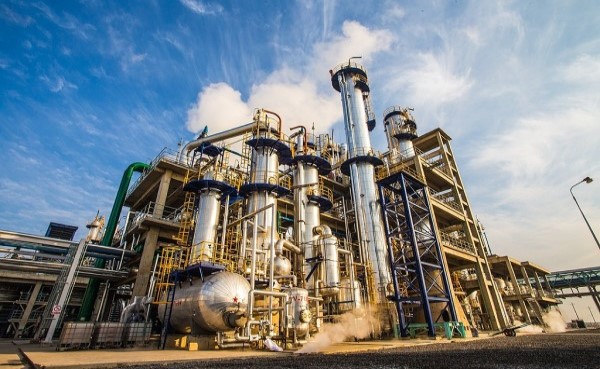

Chemical Processing Plants

Fans help to remove fumes, control humidity, and maintain safe working conditions in environments where chemicals are produced or processed.

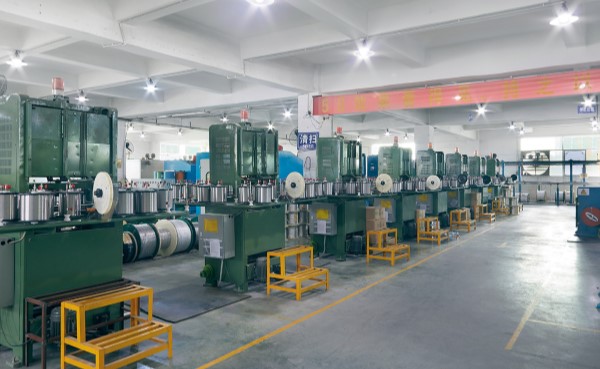

Factories and Manufacturing Plants

High-volume exhaust fans are used to remove heat, fumes, and airborne particles generated by machinery and industrial processes.

HOW TO CALCULATE THE QUANTITY OF PUSH-PULL TYPE WALL EXHAUST FAN

Step 1.

Calculate the Workspace Volume

if A=25 m, B=50 m, C=12m & D=9m

Volume of workspace

= (A x B x D) + A/2 x (C –D) x B

= (25 x 50 x 9) + 25/2 x (12 – 9) x 50

= 11250 + 1875 = 13,125 m3

Step 2.

Decide on the Air Change Rate

Air Change Rate = 10 as an example here.

Step 3.

Calculate the exhaust air fan's Total Air Flow

Exhaust Air Fans' total air flow

= 13,125 x 10

= 131,250 m³/h

Step 4.

Select the Exhaust Air Fan Model

Model YS-1270 air flow is 48,000 m3/h.

The quantity of Model YS-1270 required is

131,250/48,000= 2.73 (3 units)

COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM

"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.

Main features:

Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.

Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.

Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.

Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.

Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
