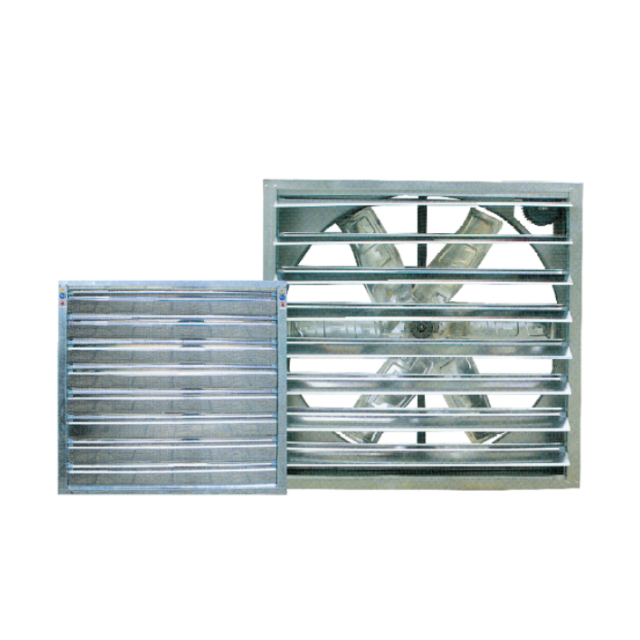

1100*1100*400mm Heavy Hammer Type Greenhouse Exhaust Fan YS-1000

The heavy hammer type greenhouse exhaust fan YS-1000 is a ventilation device that can move a large amount of air out of an enclosed space, and the space will be under negative pressure. The steelyard weight opened the installment to guarantee thoroughly the louver leaf blade opened shut the reliable arriving.
  • YS-1000

  • Yaoshun

  • 1 year

  • Outer frame, Motor, Fan blades and etc.

  • China

  • Greenhouses, Poultry Farms, Swine Confinement, Dairy Barns, Livestock Buildings, Kennels, Industrial Plants, Warehouses, Factories

  • 1000mm

  • 28800 m³/h at 20Pa

  • ≥ 1400 rpm

  • 1100*1100*400mm

  • 380V

  • 750W

Availability:


FEATURES OF HEAVY HAMMER TYPE GREENHOUSE EXHAUST FAN


Main structure:

Fans mainly consist of a blade, motor, frame, protect the net, bracing case, and shutters. The motor drives the blade to cause airflow and the louver window can open and close automatically to keep the dust from entering.


Performance and characteristic:

Frame using advanced automatic processing, and height precision. Extra-depth zinc coating frame, corrosion resistance strong. High-strength aluminum alloy casting wheel, the reasonable perspective of the type, to reach the maximum airflow. High-precision micro-computer-aided manufacturing systems can make the best of its fans. Five rigorous quality testing procedures, noise detection, vibration testing, concentric rotation performance testing, speed of blade testing, and the whole fan efficiency detection..380V special motor.CAD/CAM optimizing design



exhaust fan housing

Outer Frame

The air blower outer covering guard shield design uses the standard galvanized sheet, the pressure muscle strengthens, and a ramming formation; It uses the advanced rivet craft assembly line standardization production, the performance stable does not distort, and it may compare favorably with the import product.

exhaust fan shutter

Shutter

The air blower leaf blade has two kinds of possible choices: Walks slowly and aimlessly with the zinc plate and the stainless steel plate. Characteristic: After the rust prevention performance is good, the stopping property well hundred leaf blades closed lightproof does not ventilate.

Shutter Linkage

Shutter Linkage

The hundred-leaf blade of the new nylon supporting linkage may cause the air blower louver to open shut light and lively both rapidly. The leaf blade coordination is precise. The air blower width only then 400mmincreased time the transportation loading greatly.

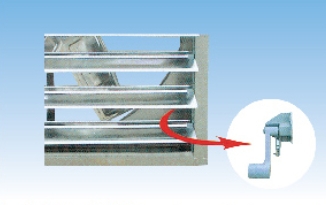

Open the organization automatically

Open the organization automatically

The transmission belt rises automatically the tight organization, cannot relax, fall the belt, the operation service is simple. The steelyard weight opened the installment to guarantee thoroughly the louver leaf blade opened shuts the reliable arriving, has avoided because of leaf blade opening not to the amount of wind loss which 90°created.

Bearing


Bearing


It uses an automobile wheel hub with special use axle bearing strength, which is high, lasting durable.



Wheel and fan blade place


Wheel and the Fan Blade Place


The air blower actuates the wheel hub and the fan blade place uses a high-strength magnesium alloy material compression casting formation The weight is light, and the performance is fine. has provided the guarantee for the air blower steadyrunmine




equilibrium examination


The Breeze Machine Leaf's Slice Moves the Equilibrium Examination


Every air blower is a transient examination by the high accuracy equilibrium: the air blower revolution does not vibration steadily. The leaf blade selects high-quality stainless steel material, and the novel streamlined form outward appearance has guaranteed the air blower's current capacity in a big way, the wind resistance is small, the noise is low, the highly effective energy conservation. It uses a ramming formation craft, causing each leaf blade shape to be consistent.

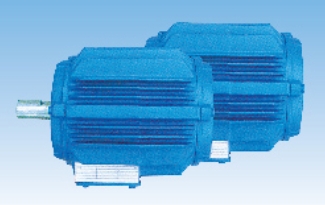

Motor


Motor


The electrical machinery uses export the electrical machinery

Power:1.1kW

Rotating speed:1440r/min

Protect degree: IP55

Insulation degree: F





TECHNOLOGY PARAMETER OF HEAVY HAMMER TYPE GREENHOUSE EXHAUST FAN



wall exhaust fan Model No. YS-1000
Fan Blades Diameter 1000mm
Air Leaf Speed ≥600rpm
Motor Rotational Speed ≥1400 rpm
Air Flow at 0Pa 32500 m³/h
Air Flow at 10Pa 30500 m³/h
Air Flow at 20Pa 28800 m³/h
Air Flow at 30Pa 26900 m³/h
Input Power 750W
Noise Decibels
≤70dB
Rated Voltage 380V
Width (A) 1100mm
Height (B) 1100mm
Thickness (C) 400mm


APPLICATION OF HEAVY HAMMER TYPE GREENHOUSE EXHAUST FAN


Push-pull high-volume exhaust fans find various applications in warehouses, animal farms, factories and industrial spaces where there's a need to move large quantities of air to control temperature, and humidity, or remove pollutants.

Here are some common applications:


Livestock Barns

Livestock Barns

High-volume exhaust fans are employed to maintain air quality, control humidity, and remove odors and noxious gases from animal housing areas.

Greenhouse

Greenhouses

They help regulate temperature and humidity levels, ensuring optimal growing conditions for plants.



Chemical Processing Plants

Chemical Processing Plants

Fans help to remove fumes, control humidity, and maintain safe working conditions in environments where chemicals are produced or processed.

factory

Factories and Manufacturing Plants

High-volume exhaust fans are used to remove heat, fumes, and airborne particles generated by machinery and industrial processes.



HOW TO CALCULATE THE QUANTITY OF  HEAVY HAMMER TYPE GREENHOUSE EXHAUST FAN

CALCULATE EXHAUST FAN

Step 1.

Calculate the Workspace Volume

if A=25 m, B=50 m, C=12m & D=9m

Volume of workspace

= (A x B x D) + A/2 x (C –D) x B

= (25 x 50 x 9) + 25/2 x (12 – 9) x 50

= 11250 + 1875 = 13,125 m3


Step 2.

Decide on the Air Change Rate

Air Change Rate = 10 as an example here.


poultry exhaust fan

Step 3.

Calculate the exhaust air fan's Total Air Flow

Exhaust Air Fans' total air flow

= 13,125 x 10

= 131,250 m³/h


Step 4.

Select the Exhaust Air Fan Model


Model YS-1000 air flow is 28,800 m3/h at 20Pa.

The quantity of Model YS-1000 required is

131,250/28,800= 4.55 (5 units)





COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM





"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.



air cooling system


Main features:




Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.


Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.


Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.


Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.


Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
