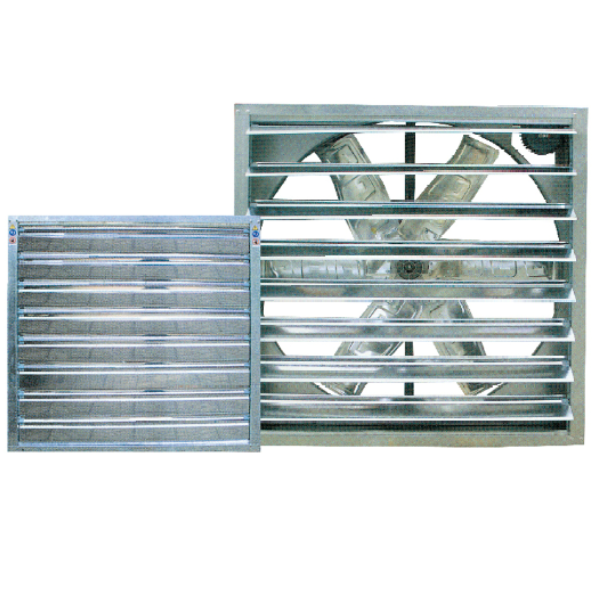

1550*1550*400mm Heavy Hammer Type Livestock Barns Exhaust Fan YS-1400

FEATURES OF HEAVY HAMMER TYPE LIVESTOCK BARNS EXHAUST FAN

Main structure:

Fans mainly consist of a blade, motor, frame, protect the net, bracing case, and shutters. The motor drives the blade to cause airflow and the louver window can open and close automatically to keep the dust from entering.

Performance and characteristic:

Frame using advanced automatic processing, and height precision. Extra-depth zinc coating frame, corrosion resistance strong. High-strength aluminum alloy casting wheel, the reasonable perspective of the type, to reach the maximum airflow. High-precision micro-computer-aided manufacturing systems can make the best of its fans. Five rigorous quality testing procedures, noise detection, vibration testing, concentric rotation performance testing, speed of blade testing, and the whole fan efficiency detection..380V special motor.CAD/CAM optimizing design

Outer Frame

The air blower outer covering guard shield design uses the standard galvanized sheet, the pressure muscle strengthens, and a ramming formation; It uses the advanced rivet craft assembly line standardization production, the performance stable does not distort, and it may compare favorably with the import product.

Shutter

The air blower leaf blade has two kinds of possible choices: Walks slowly and aimlessly with the zinc plate and the stainless steel plate. Characteristic: After the rust prevention performance is good, the stopping property well hundred leaf blades closed lightproof does not ventilate.

Shutter Linkage

The hundred-leaf blade of the new nylon supporting linkage may cause the air blower louver to open shut light and lively both rapidly. The leaf blade coordination is precise. The air blower width only then 400mmincreased time the transportation loading greatly.

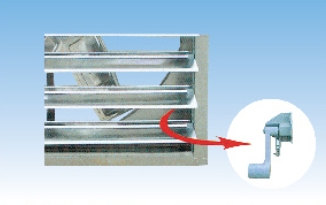

Open the organization automatically

The transmission belt rises automatically the tight organization, cannot relax, fall the belt, the operation service is simple. The steelyard weight opened the installment to guarantee thoroughly the louver leaf blade opened shuts the reliable arriving, has avoided because of leaf blade opening not to the amount of wind loss which 90°created.

TECHNOLOGY PARAMETER OF HEAVY HAMMER TYPE LIVESTOCK BARNS EXHAUST FAN

	Model No.	YS-1400
	Fan Blades Diameter	1400mm
	Air Leaf Speed	≥439rpm
	Motor Rotational Speed	≥1400 rpm
	Air Flow at 0Pa	54800 m³/h
	Air Flow at 10Pa	52650 m³/h
	Air Flow at 20Pa	50300 m³/h
	Air Flow at 30Pa	48100 m³/h
	Input Power	1500W
	Noise Decibels	≤70dB
	Rated Voltage	380V
	Width (A)	1550mm
	Height (B)	1550mm
	Thickness (C)	400mm

APPLICATION OF HEAVY HAMMER TYPE LIVESTOCK BARNS EXHAUST FAN

Push-pull high-volume exhaust fans find various applications in warehouses, animal farms, factories and industrial spaces where there's a need to move large quantities of air to control temperature, and humidity, or remove pollutants.

Here are some common applications:

Livestock Barns

High-volume exhaust fans are employed to maintain air quality, control humidity, and remove odors and noxious gases from animal housing areas.

Greenhouses

They help regulate temperature and humidity levels, ensuring optimal growing conditions for plants.

Chemical Processing Plants

Fans help to remove fumes, control humidity, and maintain safe working conditions in environments where chemicals are produced or processed.

Factories and Manufacturing Plants

High-volume exhaust fans are used to remove heat, fumes, and airborne particles generated by machinery and industrial processes.

HOW TO CALCULATE THE QUANTITY OF  HEAVY HAMMER TYPE LIVESTOCK BARNS EXHAUST FAN

Step 1.

Calculate the Workspace Volume

if A=25 m, B=50 m, C=12m & D=9m

Volume of workspace

= (A x B x D) + A/2 x (C –D) x B

= (25 x 50 x 9) + 25/2 x (12 – 9) x 50

= 11250 + 1875 = 13,125 m3

Step 2.

Decide on the Air Change Rate

Air Change Rate = 10 as an example here.

Step 3.

Calculate the exhaust air fan's Total Air Flow

Exhaust Air Fans' total air flow

= 13,125 x 10

= 131,250 m³/h

Step 4.

Select the Exhaust Air Fan Model

Model YS-1400 air flow is 50,300 m3/h at 20Pa.

The quantity of Model YS-1400 required is

131,250/50,300= 2.6 (3 units)

COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM

"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.

Main features:

Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.

Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.

Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.

Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.

Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
