Brown 7090 Evaporative Cooling Pad for Poultry Farms
The 7090 evaporative cooling pad is designed for evaporative cooling and ventilation systems in poultry houses, livestock farms, greenhouses, and various other structures.
Constructed from specially treated corrugated cellulose material, the pad creates a vast contact surface area between the in

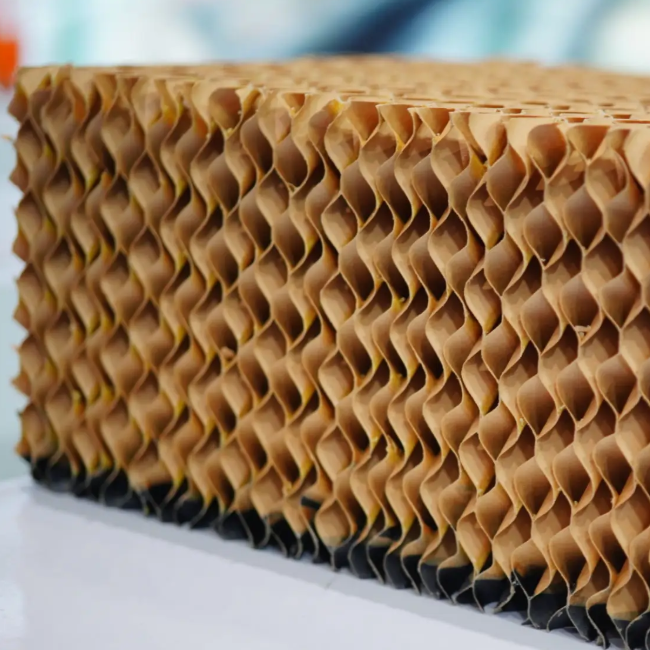

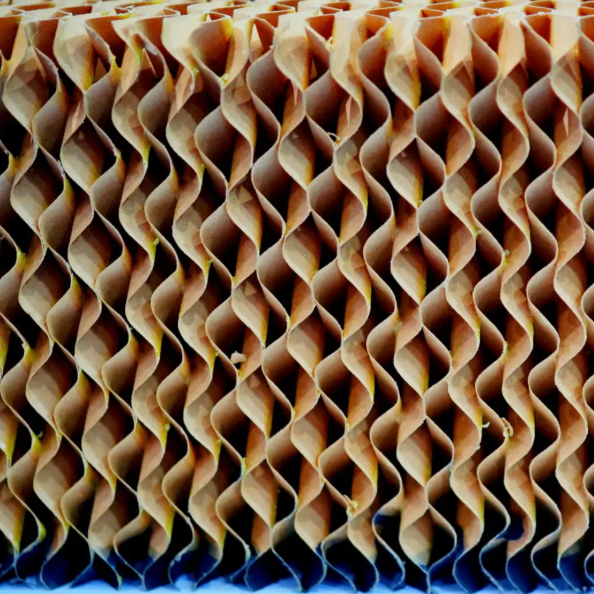

coming air and the circulating water. As hot outdoor air passes through the wetted pad, some of the water evaporates, absorbing heat from the airflow. Widely used in agricultural and livestock cooling systems, the 7090 pad features a large-flute structure that is particularly suitable for environments with high dust levels. Some customers opt to have one side of the pad coated in black to extend its service life.
Key Features of Brown 7090 Cooling Pad
· Corrugated cellulose cooling media
· Good water absorption and distribution
· Large evaporative contact surface
· Designed for high-volume ventilation systems
· Suitable for continuous evaporative cooling
· Custom height, width, and thickness available
· Optional protective coating
· Optional aluminum, galvanized or stainless steel frame
· Suitable for OEM and bulk orders
STANDARD SIZE OF EVAPORATIVE COOLING PADS
| FLUTE ANGLE | 45/45 DEG, 45/15 DEG, 30/30 DEG |
| FLUTE HEIGHT | 5mm, 7mm |
| DEPTH(D) | 50mm, 100mm, 150mm, 200mm, 250mm,300mm |
| WIDTH(W) | 300mm, 600mm |
| HEIGHT(H) | 300mm, 600mm, 900mm, 1200mm, 1500mm, 1800mm, 2000mm |
Note: The size of cooling pad can be customized.

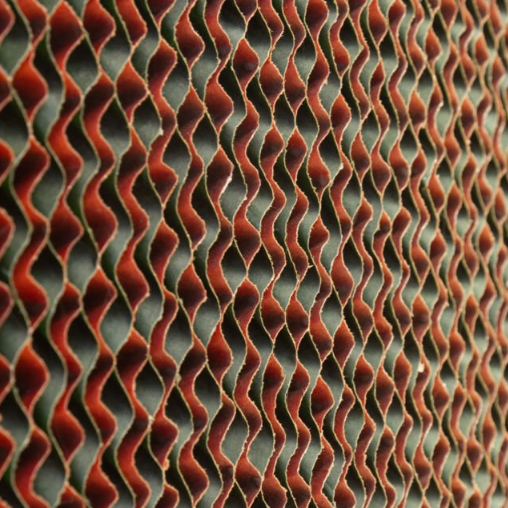

COLOR OF EVAPORATIVE COOLING PADS
PRODUCTION EQUIPMENT OF EVAPORATIVE COOLING PAD
The drying light boxes of the resin machine are made of high-quality stainless steel which could ensure never rust under high-temperature conditions.
The drying light boxes adopt 8 digital controls, easy operation, uniform temperature, higher heating efficiency, and lower electricity consumption, to improve the quality of the cooling pad.
The corrugated machine adopts wear-resistant bushing which is made of special material, withstands high temperatures, longer service life.
Adopt an inner circulating heating oven, multi-direction heating, quick temperature rising, high efficiency, and lower drying cost.
Widen glue machine, improve working efficiency, and reduce working intensity.
FAQ:
Q: When do I need to replace evaporative cooling pads?
A: In fact, there are different types of evap cooling pads available on the market, and there is no right answer as to when to replace the cooling pads. Some pads only last for a few months, others last for years."Yaoshun" brand evaporative cooler pads， it is recommended to clean the pads at least once every year or twice a year (before and after use) and replace them after 2-3 years. The best series could last 5 years.
Q: How to calculate the area of cooling pads?
A: To select the 100 mm thick “Yaoshun" standard cooling pad made by Yaoshun Company, the wind speed blowing over the pad is 1.2 m/s.The theoretical cooling pad area = ventilation volume/the wind speed
Q: Why choose Shuncheng?
A: Shuncheng cooling pads are economical, they have very low running costs.Shuncheng exports the world over because of the superior quality and provides customized solutions for every application.
Q: What should I do if there is an odor?
A: Firstly, new evaporative cooling pads have a "start-up" odor.You could wash the pads for several hours without airflow by running the pump. And then, change the fresh water, and start up the system.If there is still an odor, please repeat the process.It also helps to increase the wetting ability of the evap cooling pads.
COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM
"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.
Main features:
Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.
Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.
Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.
Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.
Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
