Evaporative Cooling Pad For Poultry Farms

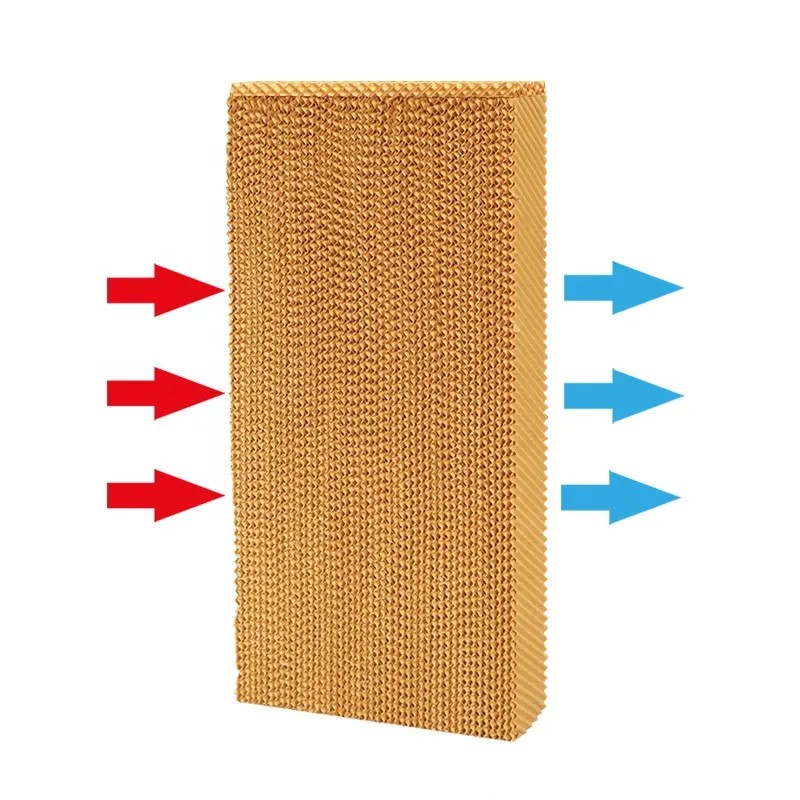

PRINCIPLE OF EVAPORATIVE COOLING PADS

"Yaoshun" Evaporative Cooling Pads are typically made of a material with a high water-absorbing capacity.The principle of air cooling pads includes three parts, water absorption, heat exchange, and cool air output.The cooling pad is designed to hold a significant amount of water. When warm air passes through the wet pad, some of the water evaporates into the air. As the water in the pad evaporates, it absorbs heat from the air. This process cools the air passing through the pad. The cooled air is then blown out into spaces like poultry farms, greenhouses, factories, etc., providing a cooling effect.

FEATURES OF EVAPORATIVE COOLING PADS

1. "Yaoshun" evaporative cooling pads have a long service life. The corrugated paper is specially treated with high structural strength, corrosion resistance, and mildew resistance.

2. "Yaoshun" evaporative cooling pads' evaporation efficiency is high. Evaporative cooler pads have a specific stereoscopic structure which provides the largest evaporation area for the heat exchange between water and air.

3. "Yaoshun" evaporative cooling pads have good permeability and water absorption, and no water drift. It could ensure that water evenly penetrates the entire cooling pad wall.

4. "Yaoshun" evaporative cooling pads are safe, energy-saving, environmental protection, economical and applicable.

5. "Yaoshun" evaporative cooling pads could used with aluminum frames, stainless steel frames, galvanized sheet frames, and PVC frames. Customers could choose according to their requirements.


STANDARD SIZE OF EVAPORATIVE COOLING PADS

 Note: The size of cooling pad can be customized.

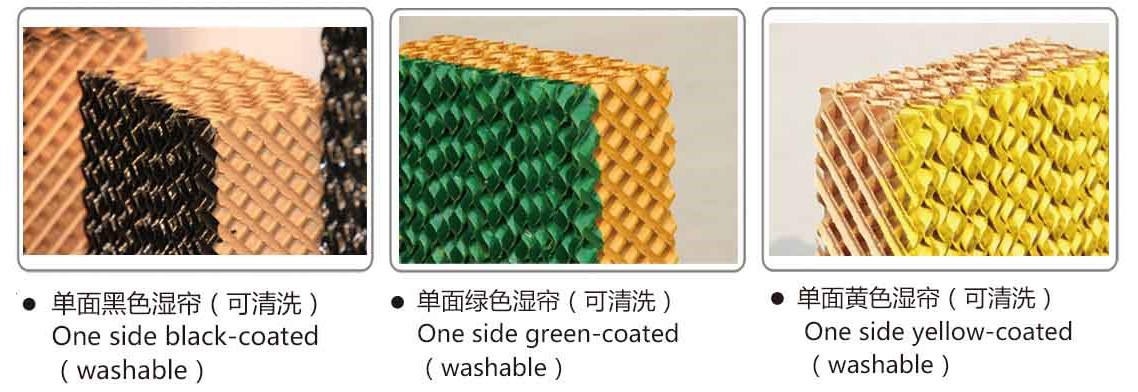

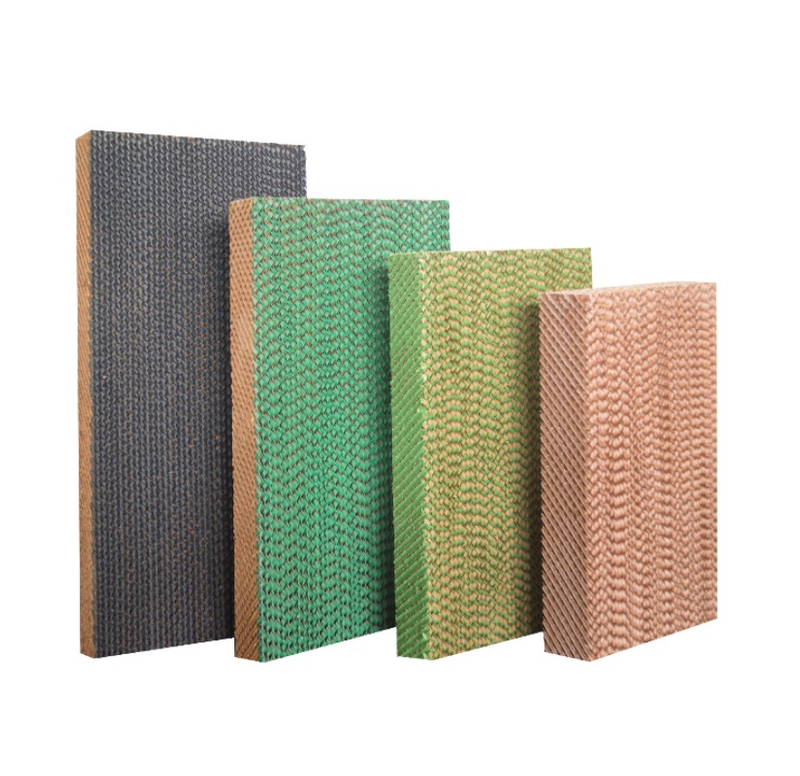

COLOR OF EVAPORATIVE COOLING PADS

PRODUCTION EQUIPMENT OF EVAPORATIVE COOLING PAD

The drying light boxes of the resin machine are made of high-quality stainless steel which could ensure never rust under high-temperature conditions.

The drying light boxes adopt 8 digital controls, easy operation, uniform temperature, higher heating efficiency, and lower electricity consumption, to improve the quality of the cooling pad.

The corrugated machine adopts wear-resistant bushing which is made of special material, withstands high temperatures, longer service life.

Adopt an inner circulating heating oven, multi-direction heating, quick temperature rising, high efficiency, and lower drying cost.

Widen glue machine, improve working efficiency, and reduce working intensity.

FAQ:

Q: When do I need to replace evaporative cooling pads?

A: In fact, there are different types of evap cooling pads available on the market, and there is no right answer as to when to replace the cooling pads. Some pads only last for a few months, others last for years."Yaoshun" brand evaporative cooler pads， it is recommended to clean the pads at least once every year or twice a year (before and after use) and replace them after 2-3 years. The best series could last 5 years.

Q: How to calculate the area of cooling pads?

A: To select the 100 mm thick “Yaoshun" standard cooling pad made by Yaoshun Company, the wind speed blowing over the pad is 1.2 m/s.The theoretical cooling pad area = ventilation volume/the wind speed

Q: Why choose Shuncheng?

A: Shuncheng cooling pads are economical, they have very low running costs.Shuncheng exports the world over because of the superior quality and provides customized solutions for every application.

Q: What should I do if there is an odor?

A: Firstly, new evaporative cooling pads have a "start-up" odor.You could wash the pads for several hours without airflow by running the pump. And then, change the fresh water, and start up the system.If there is still an odor, please repeat the process.It also helps to increase the wetting ability of the evap cooling pads.

COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM

"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.

Main features:

Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.

Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.

Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.

Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.

Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
