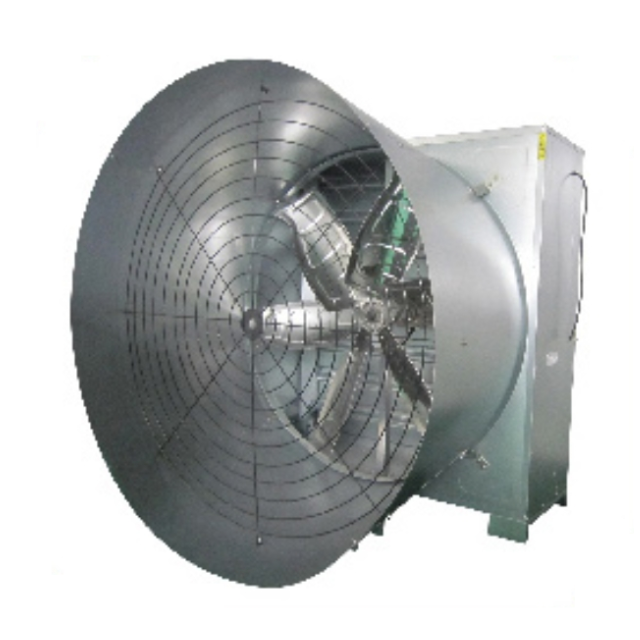

Shutter Cone Exhaust Fan For Livestock Barns YS-1380A
A cone exhaust fan is a ventilation fan designed to remove air from a specific space, typically to improve air circulation, remove contaminants, or regulate temperature and humidity levels. These fans are suitable for use in a variety of environments, including industrial facilities, commercial spaces, and residential areas.
Reasonable cone designing can concentrate blowing and direction, so the airflow is bigger and the fan will be energy-efficient, lower noise;
The frame of the shutter cone exhaust fan is hot galvanized with advanced auto-machining techniques. The thickness of the galvanized layer is 180g/㎡,
One shutter cone exhaust fan has 6 stainless steel blades, model 430BA. Do a balance test to make sure the weight of each blade is similar.
STRUCTURE OF SHUTTER CONE EXHAUST FAN
1.100% copper Motor
2.High-quality belt
3.Galvanized/stainless steel blade
4.Narrow as 1.5cm guard, anti-corrosion, safer guarantee
5.Frame made by automatic processing technology
6.Belt pulley made of high-strength magaluma, light weight
7.Double-row bearing, anti-vibration, long service life
TECHNOLOGY PARAMETER OF SHUTTER CONE EXHAUST FAN
Item No.
YS-1380A
Blades Diameter
1250mm
Blades Rotational Speed
427rpm
Motor Rotational Speed
1400rpm
Air Flow
44000m³/h
Total Pressure
80Pa
Noise Decibels
≤70dB
Import Power
1100W
Rated Voltage
380V
Size
1380*1380*1250mm
APPLICATION OF SHUTTER CONE EXHAUST FAN
Ventilation butterfly type cone exhaust fans find various applications in warehouses, animal farms, factories and industrial spaces where there's a need to move large quantities of air to control temperature, and humidity, or remove pollutants.
Here are some common applications:
Livestock Barns
Butterfly type cone exhaust fans are employed to maintain air quality, control humidity, and remove odors and noxious gases from animal housing areas.
Greenhouses
They help regulate temperature and humidity levels, ensuring optimal growing conditions for plants.
Factories and Manufacturing Plants
Butterfly type cone exhaust fans are used to remove heat, fumes, and airborne particles generated by machinery and industrial processes.
Chemical Processing Plants
Fans help to remove fumes, control humidity, and maintain safe working conditions in environments where chemicals are produced or processed.
COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM
"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.
Main features:
Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.
Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.
Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.
Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.
Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
FEATURES OF SHUTTER CONE EXHAUST FAN
Reasonable cone designing can concentrate blowing and direction, so the airflow is bigger and the fan will be energy-efficient, lower noise;
The frame of the shutter cone exhaust fan is hot galvanized with advanced auto-machining techniques. The thickness of the galvanized layer is 180g/㎡,
One shutter cone exhaust fan has 6 stainless steel blades, model 430BA. Do a balance test to make sure the weight of each blade is similar.
STRUCTURE OF SHUTTER CONE EXHAUST FAN
1.100% copper Motor
2.High-quality belt
3.Galvanized/stainless steel blade
4.Narrow as 1.5cm guard, anti-corrosion, safer guarantee
5.Frame made by automatic processing technology
6.Belt pulley made of high-strength magaluma, light weight
7.Double-row bearing, anti-vibration, long service life
TECHNOLOGY PARAMETER OF SHUTTER CONE EXHAUST FAN
Item No.
YS-1380A
Blades Diameter
1250mm
Blades Rotational Speed
427rpm
Motor Rotational Speed
1400rpm
Air Flow
44000m³/h
Total Pressure
80Pa
Noise Decibels
≤70dB
Import Power
1100W
Rated Voltage
380V
Size
1380*1380*1250mm
APPLICATION OF SHUTTER CONE EXHAUST FAN
Ventilation butterfly type cone exhaust fans find various applications in warehouses, animal farms, factories and industrial spaces where there's a need to move large quantities of air to control temperature, and humidity, or remove pollutants.
Here are some common applications:
Livestock Barns
Butterfly type cone exhaust fans are employed to maintain air quality, control humidity, and remove odors and noxious gases from animal housing areas.
Greenhouses
They help regulate temperature and humidity levels, ensuring optimal growing conditions for plants.
Factories and Manufacturing Plants
Butterfly type cone exhaust fans are used to remove heat, fumes, and airborne particles generated by machinery and industrial processes.
Chemical Processing Plants
Fans help to remove fumes, control humidity, and maintain safe working conditions in environments where chemicals are produced or processed.
COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM
"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.
Main features:
Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.
Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.
Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.
Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.
Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
