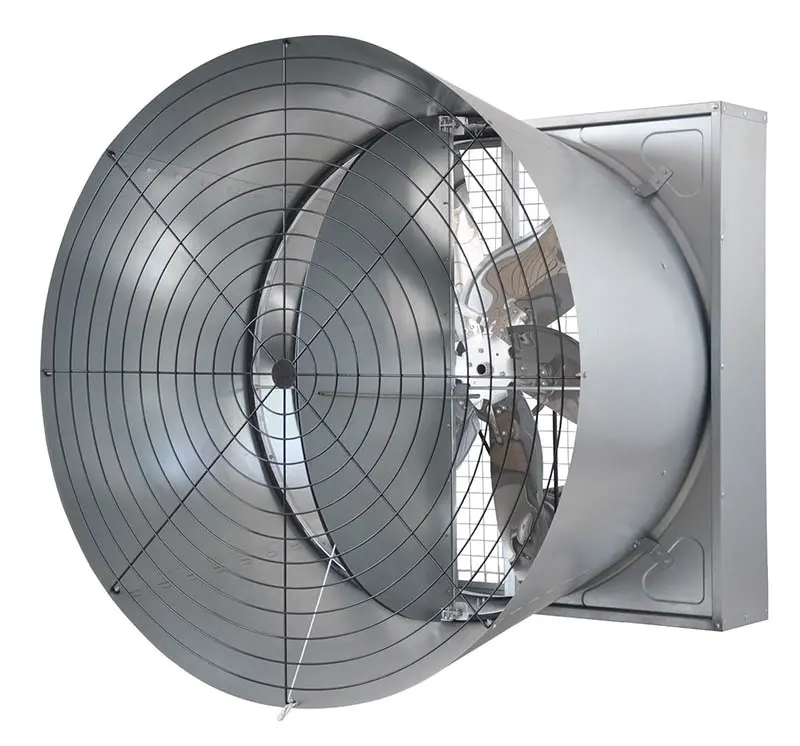

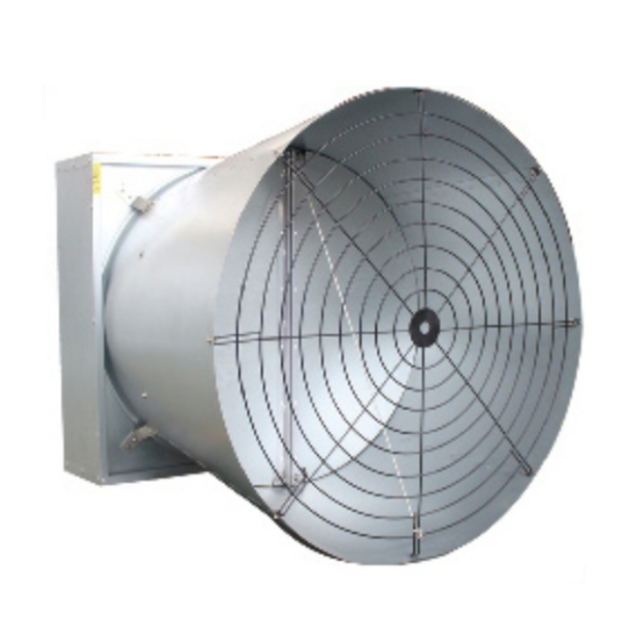

Ventilation Butterfly Type Cone Exhaust Fan For Chicken Houses YS-1380B
A cone exhaust fan is a ventilation fan designed to remove air from a specific space, typically to improve air circulation, remove contaminants, or regulate temperature and humidity levels. These fans are suitable for use in a variety of environments, including industrial facilities, commercial spaces, and residential areas.
FEATURES OF VENTILATION BUTTERFLY TYPE CONE EXHAUST FAN
Ventilation butterfly-type cone exhaust fans adopt an advanced front double-door opening device, it has low wind resistance, good sealing, and high efficiency. The extended cone design improves exhaust power.
The galvanized steel frame of ventilation butterfly-type cone exhaust fans adopts a 180g/㎡ galvanized layer to avoid rust.
The double doors of the ventilation butterfly-type cone exhaust fans are closed with rubber sealing rings to effectively avoid air backflow when the fan is started at different times. Compared with fans of the same power, the operating efficiency is greatly improved by 15-20%.
Designed for top efficiency, the ventilation butterfly-type cone exhaust fan blades are stamped and formed from Krupp stainless steel. Large air volume, no deformation, no breakage, no dust accumulation, beautiful and durable. Thickness 1.5mm. Surface finish grade BA.

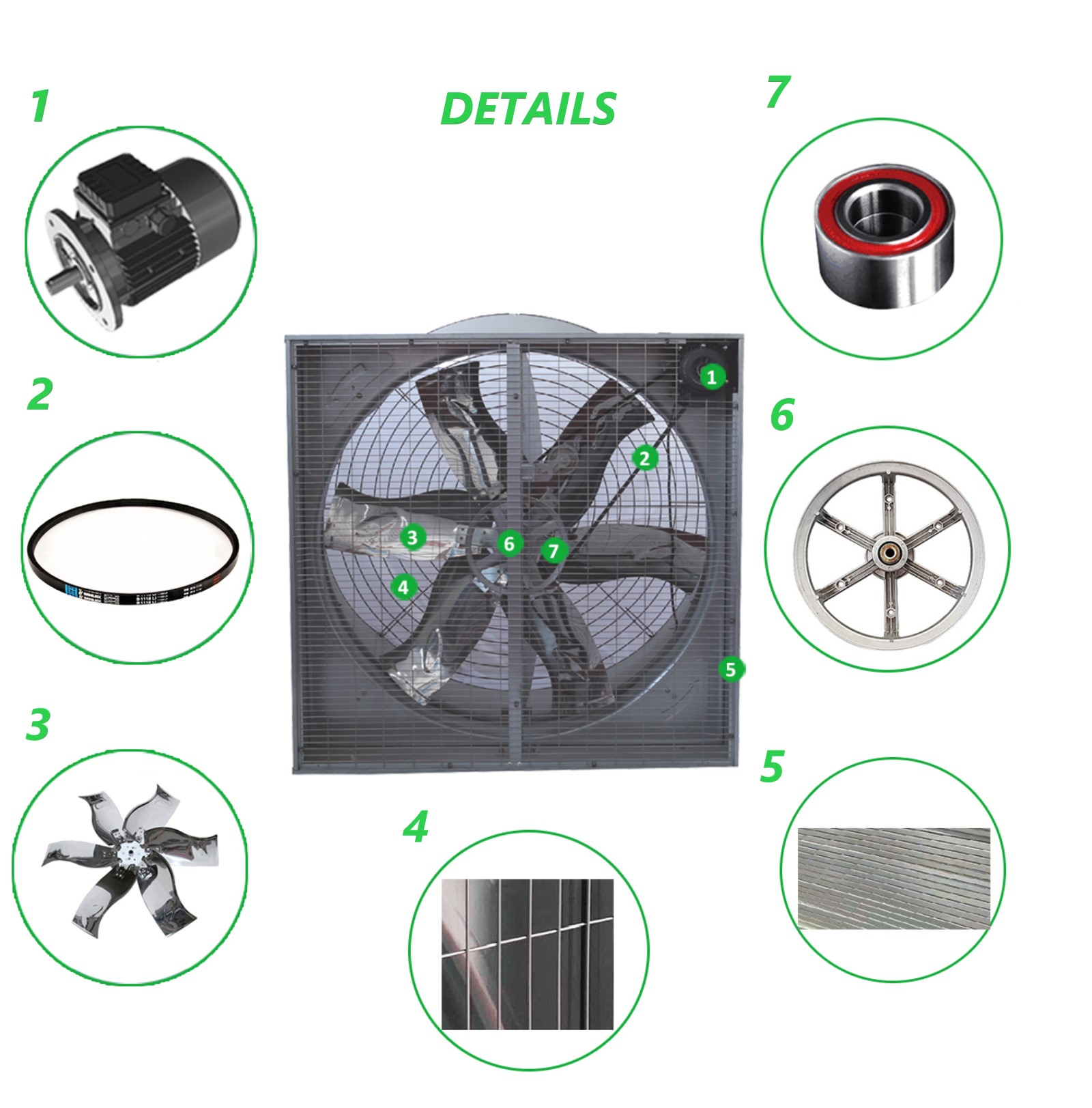

STRUCTURE OF VENTILATION BUTTERFLY TYPE CONE EXHAUST FAN
1.100% copper Motor
2.High-quality belt
3.Galvanized/stainless steel blade
4.Narrow as 1.5cm guard, anti-corrosion, safer guarantee
5.Frame made by automatic processing technology
6.Belt pulley made of high-strength magaluma, light weight
7.Double-row bearing, anti-vibration, long service life
TECHNOLOGY PARAMETER OF VENTILATION BUTTERFLY TYPE CONE EXHAUST FAN
Item No.
YS-1380B
Blades Diameter
1270mm
Blades Rotational Speed
439rpm
Motor Rotational Speed
1400rpm
Air Flow
51000m³/h
Total Pressure
80Pa
Noise Decibels
≤70dB
Import Power
1100W
Rated Voltage
380V
Size
1380*1380*1300mm
APPLICATION OF VENTILATION BUTTERFLY TYPE CONE EXHAUST FAN
Ventilation butterfly type cone exhaust fans find various applications in warehouses, animal farms, factories and industrial spaces where there's a need to move large quantities of air to control temperature, and humidity, or remove pollutants.
Here are some common applications:
Livestock Barns
Butterfly type cone exhaust fans are employed to maintain air quality, control humidity, and remove odors and noxious gases from animal housing areas.
Greenhouses
They help regulate temperature and humidity levels, ensuring optimal growing conditions for plants.

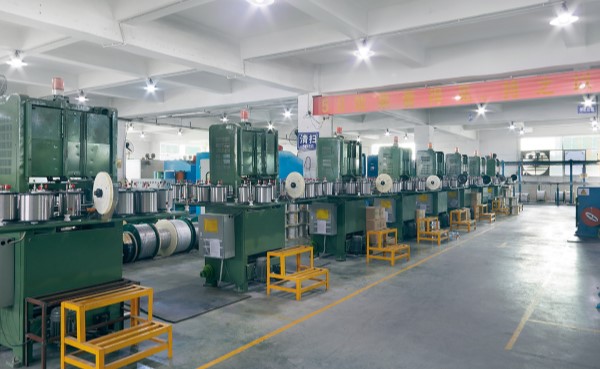

Factories and Manufacturing Plants
Butterfly type cone exhaust fans are used to remove heat, fumes, and airborne particles generated by machinery and industrial processes.

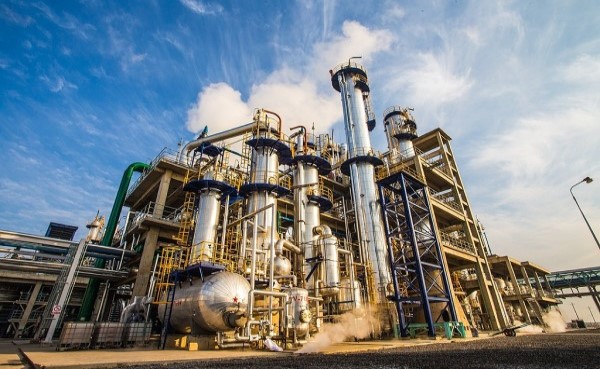

Chemical Processing Plants
Fans help to remove fumes, control humidity, and maintain safe working conditions in environments where chemicals are produced or processed.
COOLING PAD - EXHAUST FAN COOLING AND HUMIDIFYING SYSTEM
"YAOSHUN" cooling pad series production including "yaoshun" cooling pad, frame, circulating water system etc.
Main features:
Efficient Cooling: The evaporative cooling pad uses specialized evaporative cooling technology that draws warm air and passes it through the wet pad. This process naturally lowers the air temperature, providing a cool and pleasant atmosphere.
Powerful Exhaust Fan: A high-performance exhaust fan ensures rapid air circulation, expelling hot and stale air to make room for vibrant fresh cooling air.
Humidification Function: Our systems do more than just cool. It introduces moisture into the air, making it particularly effective in arid climates or dry seasons. This dual function creates a comfortable and healthy living environment.
Adjustable Settings: Customize the system to your preferences with adjustable fan speeds, cooling levels, and humidity controls. Enjoy a personalized experience tailored to your unique comfort needs.
Energy-Efficient Operation: Our cooling pads are designed with energy efficiency in mind. It maximizes cooling efficiency while minimizing power consumption, ensuring you stay cool in an eco-friendly way.
